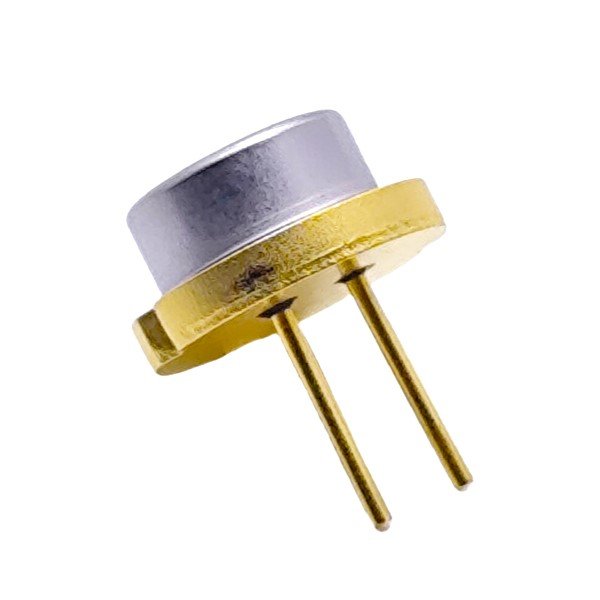

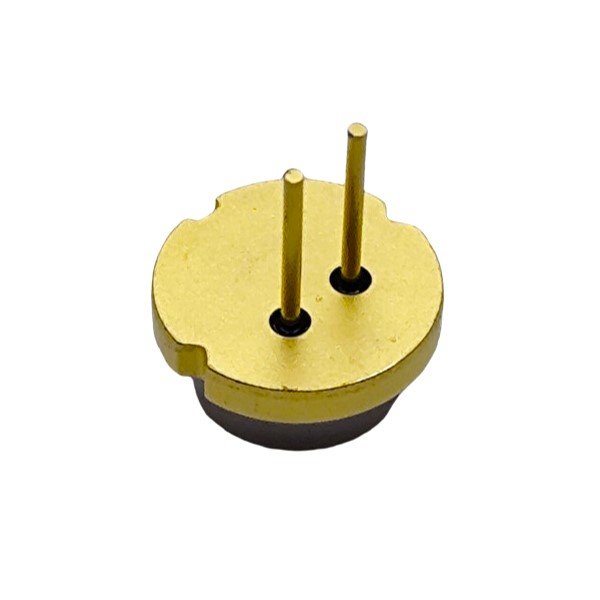

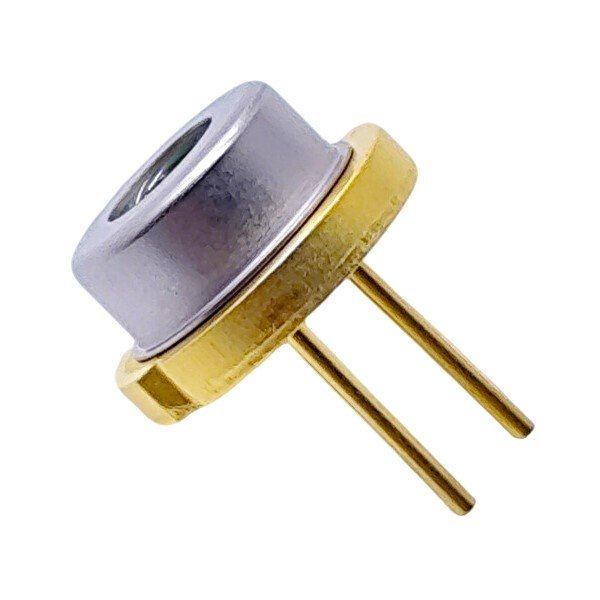

The Z80_1.5W520G9 Laser Diode is a New(zero hours) TO-5 green emitter with an output power reaching up to 1500mW CW. Operating at approximately 520nm, it is ideal for applications including laser pointing, and medical/lab equipment, delivering precision and efficiency in healthcare, dental, laboratory, and industrial settings.
Options/Features:
- Compact Design: 12mm x 30mm solid copper module for superior heat dissipation, assembled with high-quality thermal conductive paste.
- Enhanced Focusing: Extended threads for collimator lenses ensure precise beam adjustment.
- Wiring: Includes two 22AWG silicone-jacketed leads for reliable connectivity.
- Lens Options (includes tensioning spring when selected):
- G2 Lens: Single Element – Optimized for close-range cutting and engraving; not well suited for long-distance pointing.
- G8 Lens: Single Element – Versatile for cutting, engraving, and medium-range pointing.
- 2E Lens: Two Element – Suitable for cutting, engraving, and medium-range pointing.
Applications: Laser pointers, and medical/lab equipment.
Safety: Always wear appropriate protective eyewear during operation.
Note: Fast global shipping available. Contact us for custom configurations or additional details.
